Fortima

• Fortima with two different baling systems – fixed or variable
• Powerful EasyFlow pick-up for a good swath pick-up
• Precision cutting system MultiCut: Forced cutting for best cutting quality
• Slat and chain conveyor and for every type of use
• Twine tying or net wrapping for a perfect bale shape

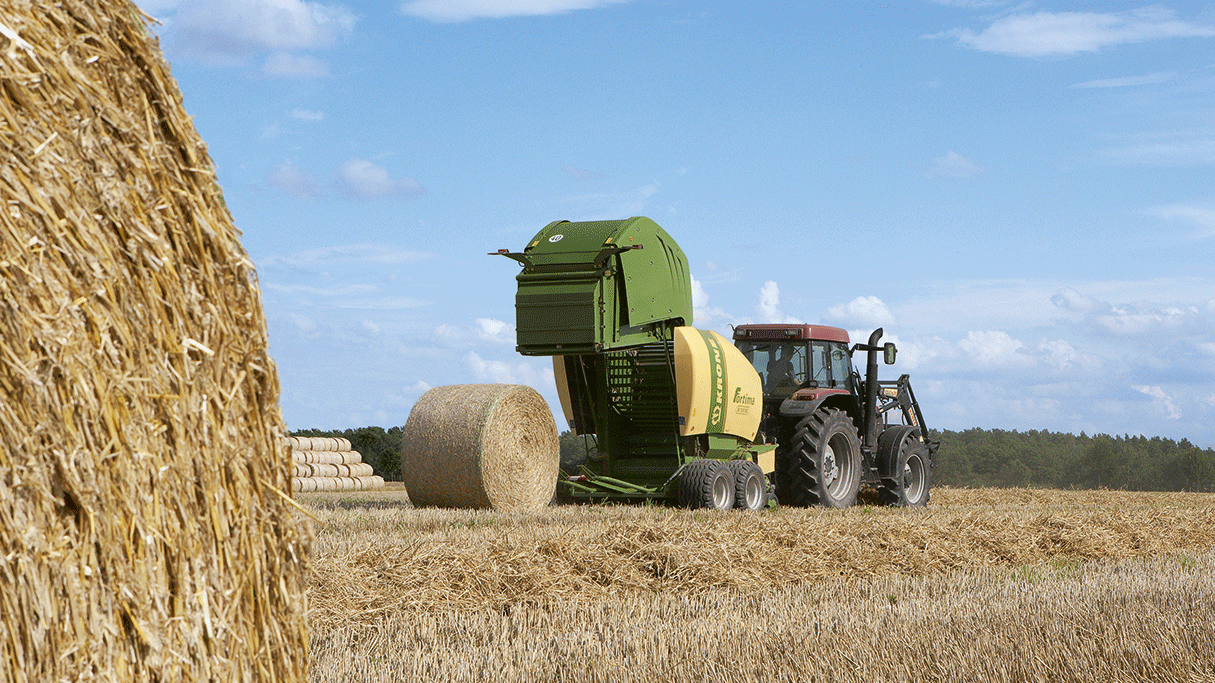

KRONE Fortima – variable and versatile. The round baler convinces with its straightforward design and intuitive operation. Thanks to the slat and chain conveyor, all types of crops can be baled smoothly. Whether hay, straw and silage!

• The round baler Fortima F 1250 and F 1600
• The round baler with cutting system Fortima F 1250 MC and F 1600 MC
• 1.25 m (4'1") or 1.55 (5'1") m diameter bales

Take advantage of the headstart you get from the fixed-chamber round balers Fortima F 1250 and F 1600 with and without MultiCut cutting system. Boasting a host of unique features - the camless pick-up, the chain-and-slat elevator, the simple design, top durability and low maintenance – these balers mean quick payback on your investment.

The ejector throws the bale clear of the rear door and also serves as a tray that collects the bale. The benefit? You can start the next cycle while the rear door is still closing.

The Fortima fixed chamber baler stands out for its simple design that requires only few drive chains, a concept that reduces tractor inputs and service and maintenance but offers extra dependability.

The chain-and-slat elevator has a tensioning system that makes sure the elevator maintains the correct tension and that frees operators from retensioning the elevator frequently.

The KRONE concept of the all-enclosed bale chamber and the chain-and-slat elevator has proven paramountly well in the most diverse harvest conditions around the world.

The chain-and-slat elevator adds layer after layer to the rolling bale, forming tight and well-shaped round bales. The chain-and-slat elevator scores especially on its superior feeding ability. Rolling starts earlier and so the baling cycle finishes earlier as well. The elevator also creates a firmer core and packs more weight and density into each bale, which translates into higher quality silage and better exploitation of truck capacities.

• The round baler with feed rotor Fortima V 1500
• The round balers with cutting system: Fortima V 1500 MC and V 1800 MC
• Infinitely variable bale diameters from 1.00 m to 1.50 m (3'3" - 4'11") or 1.00 to 1.80 m (3'3" - 5'11")

The variable chamber round balers Fortima V 1500 and V 1800 meet all requirements. One machine produces 1.00 m to 1.50 m (3'3" - 4'11") or 1.00 to 1.80 m (3'3" - 5'11") diameter bales to cater for grass silage applications where smaller bale sizes are preferred as well as applications in hay and straw where larger bales are typical.

The main gearbox (540 rpm) is arranged centrally. Here, the incoming power is split and sent on to either side, a design that cuts down on driveline lengths and optimizes the power flow to the pick-up, the feed rotor or rotor cutter and the chain-and-slat elevator.

Drive chains are few and far between. Few chains mean greater efficiency and better operational reliability.

On the variable chamber model, the optional ejector is linked to the rear door and tips as the door opens, allowing the bale to roll onto the ground and clear of the closing door. There is no need to reverse the tractor at the end of a wrapping cycle.

Fortima features an extra spiral roller with raised bars that is fitted in addition to the starter roller – a design that ensures quick bale starts and optimizes the baling process.

On the variable chamber model, two hydraulic rams, one on either side of the rear door, exert the full baling pressure at the rear of the baling chamber.

The variable bale chamber features two hydraulic rams that alter the bale density infinitely variably after the pressure is set on a spool valve that comes with a pressure gauge.

• The bale density is controlled infinitely variably
• The extra spiral roller speeds up bale starts
• The optional bale ejector ejects the bale actively

We at KRONE understand the needs of farmers. Providing high bale densities, KRONE balers are extremely robust, uncluttered and perfectly specified. Last but not least, they offer superior operational reliability.

As more material enters the bale chamber, the two chain elevators press layer by layer to form tight and well-shaped round bales. The slats mesh with the crop to provide positive bale rotation at any stage of the baling cycle. The baling pressure is supplied by a hydraulic ram that actuates the tensioning arms at the front and rear ends. As soon as the bale has reached its preset diameter, twine or net wrapping is triggered. As a last step, the tailgate opens and the bale is ejected.

Fortima is equipped with two chain-and-slat elevators, one operating at the front end and the other at the rear to develop high baling pressures and produce perfectly shaped bales.

Large-diameter bales are often preferred in straw and hay as they offer better efficiency, save on wrapping material and reduce labour costs.

Small diameters are typical in silage making, because small bales are easier to handle, break up and feed. The 1.00 - 1.30 m (3'3" - 4'3") diameter bales produced by Fortima V 1500 suit most wrappers perfectly.

• Auto-levelling in undulating terrain
• Outstanding operator comfort
• Excellent tracking

Special conditions require special equipment. To meet all our customers' requirements, Fortima is available with a wide range of running gear. Choose from standard and tandem setups, braked and unbraked versions as well as air and hydraulic brakes (export version).

An air brake system is available as optional specification for Fortima V 1500. Export models can be specified with hydraulic brakes.

The optional tandem axle gives soft, quiet and safe running. The choice of tyres available ranges from 11.5/80-15.3/10 PR to 19.0/45-17/10 PR.

The standard axle is available with 11.5/80-15.3/10 PR to 500/50-17/10 PR sized tyres. Large flotation tyres reduce the risk of ground compaction and prevent rutting.

The stand adjusts to different heights thanks to a threaded head spindle. Its telescoping end can be retracted to increase the ground clearance in voluminous windrows.

Pin hitch, swinging drawbar, trailer hitch or ball hitch: You can order the Fortima balers with a 40mm hitch ring for top hitching, a 40/50mm hitch ring for bottom hitching, the 80 hitch ball or the height-adjustable drawbar to suit your specific tractor back end.

• Impeccable pick-up for higher outputs
• Smooth running
• Minimum wear – minimum maintenance

EasyFlow is a camless pick-up. The advantage of this is plain to see - a simple assembly uses fewer moving parts than controlled pick-ups with cam tracks and results in extremely quiet running, less wear and ultimately lower service and maintenance costs. EasyFlow – a powerful system that leaves no stem behind.

The pick-up is easily secured at the desired height. The pictured setting is typical for conditions involving deep ruts and extremely rough straw windrows.

The EasyFlow height control system consists of pin/hole setting systems on the gauge wheels for quick height adjustment. The pick-up unit runs particularly smoothly on pneumatic tyres.

Automatically tensioned pick-up chains are are overload protected by a shear bolt clutch.

The Fortima models without cutting system have a powerful feed rotor as standard specification.

The EasyFlow pick-up forms a compact unit that comprises either a feed rotor or a cutting rotor. The clearance between rotor and baling chamber was increased and the rotor was arranged right behind the pick-up itself to increase the intake capacity and ensure a consistent flow even in short stems.

Boasting five rows of tines spaced 55 mm (2") apart, EasyFlow picks up even the short stems. The deflector plates are galvanized for ultimate durability.

Massive augers feed the material from the sides to the middle of the machine, ensuring a smooth flow from the wide pick-up into the narrow bale chamber.

The unit eliminates the risk of pushing up crop in uneven windrows. As a result, the machine operates at maximum pick-up and output levels while the crop is flowing smoothly and consistently through the machine.

The highlight of this pick-up is the special design of the galvanized scrapers that ensure a continuous and smooth crop flow when the tines retract. and eliminates the need for a cam track.

The KRONE EasyFlow pick-up offers a 2.05 m (6'9") working width (to DIN 11220), picking up every stem, also in corners and bends.

• Top cutting quality by controlled cuts
• 64 mm (2.5") chops by the full set of 17 blades
• Quick LOC change by selecting a different number of blades in the cutting system

Up to 17 blades in the KRONE MultiCut rotor cutting system deliver short chops that make for quick payback on your investment thanks to higher bale densities, enhanced silage quality as well as easier and faster bale break-up on the feeding floor. Short straw chops absorb liquids more readily, spread more easily.

Unlock the knives and remove them from above for grinding or replacement. No tools required.

The Fortima blades cut across the full length. As the stems are pulled across the blades, the system requires less power. Their wavy edges retain their sharpness for a long period of time.

The automatic ‘Non-Stop’ auto-reset system and the hydraulic 0-blade selection system are standard specification. The hydraulic 0-blade selection is used to remove potential blockages from the feed channel.

The cut-and-feed rotors can be reversed manually or hydraulically as an option.

To remove the knives from the bank, release them by rotating the shaft, which rotates through 90°. Then remove them quickly and conveniently from above.

The double tines pull the crops consistently through the blades. The clearance between the blades and the double tines is very narrow so the crop cannot escape and the cuts are clean and precise.

The KRONE blade group control system allows operators to select only a specific number of blades (17-15 -7- 0 blades). The operator operates a selector shaft, which swings the desired number of blades into the feed channel. As he alters the spacing between the blades he varies the length of cut by up to 64 (2.5") mm.

The complete cut-and-feed rotor assembly contains 17 blades and features central blade group control that allows operators to select groups of 17-15 -7- 0 blades via a selector shaft. A hydraulic blade retracting feature ensures blockages are removed conveniently and the spur gearbox provides powerful drive.

A maximum of 17 blades are narrowly spaced at 64 mm (2.5") to produce bales that are easy to break up and spread. The blades are arranged in one row for an excellent quality of cut.

All rotors are driven by massive spur gears, which absorb even the highest loads and which provide a positive and dependable drive – even in less than uniform swaths.

Measuring 415 mm (16") in diameter, the cut-and-feed rotor boasts a particularly high feed capacity. The double tines are arranged chevron-style and pull the crops consistently through the blades. thereby reducing the risk of peak loads as the stems are cut 'one after the other'.

• High baling densities
• Effective bale starts
• Less fragmentation
• Low power input

Round balers harvest straw, hay and wilted silage around the world in a wide variety of conditions that require full operational reliability. The chain-and-slat elevators respond to these requirements and operate dependably in all these conditions.

The KRONE chain-and-slat elevator is gentle on the crop. By meshing with the material, it ensures effective bale roll and highest densities.

The heavy-duty chain-and-slat elevator runs on massive guide and drive rollers. The use of more chain links distributes the load more evenly and the use of massive rollers increases the angle at which the chains change direction, reducing the wear on the elevator, increasing its capacity and leading to smooth running. Individual chain links are easy to replace as required.

• Choice of double and quad twine wraps
• Short tying cycles
• High hourly rates

The Fortima fixed-chamber balers are available either with Medium or Comfort on-board electronics. Depending on the chosen system, the machine can be equipped with a double or a quadruple twine tying system. Comfort electronics is comprised in the in the variable bale chamber as a standard. Accordingly, these types can only be equipped with the time-saving quadruple twine tying system.

The tying cycle is triggered by an electric motor. The motor tensions the drive belt, which drives the rubber wheel and this in turn pulls the twine into the chamber.

The large storage compartment holds up to 11 balls of twine. Hoops hold the rolls in place for smooth uncoiling.

Four threads (1 -4) tie the bale a number of times, which allows applying extra wraps along the edges, depending on the settings. Four threads warrant well-shaped bales that will not lose shape as they are handled several times over.

A coned pulley controls the number of twine layers applied per cycle. Two guide blocks are used to distribute the four threads uniformly across the full width of the chamber. As the ball starts to roll, the rubber roller and the pressure roller start feeding the twine into the chamber where they are picked up by the rolling bale.

• Short baling cycles for more bales per hour
• Bales break up quickly and easily in animal buildings
• Compact feed system and positive net feed

Fortima’s net wrapping system is straightforward by design and offers superior functionality. Net wrapping is faster than twine wrapping and increases output rates. The net wrap system accepts rolls with a total net length of up to 3,600 m (11,811 ft).

This brake ensures the net or twine is applied tightly so the bale keeps in shape when it’s being handled.

At the end of the baling cycle, the electric motor triggers net wrapping - either automatically or manually.

A sensor on a toothed wheel measures the number of wraps applied and transfers the information to the cab computer. Once the programmed number of wraps is completed, the net is cut automatically.

Replacing the net roll is convenient and safe, because the operator can stand upright when reloading. To replace an empty net roll, simply swing out the dispenser arm and slide the fresh roll onto it. Then the net is fed into the net wrap system.

The large storage compartment holds three net rolls and protects them from rain. The rolls may provide up to 3,600 m (11,811 ft) of netting and are secured by a retainer.

A spring-loaded and automatic chain tensioner minimizes the time spent on service and maintenance and increases chain life.

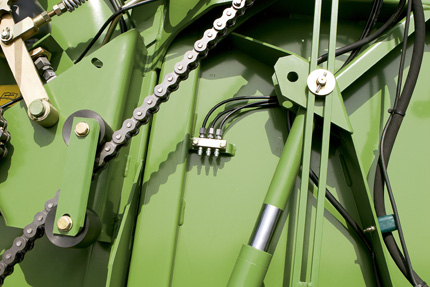

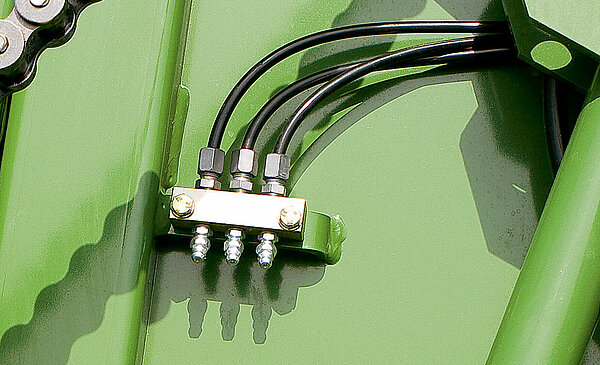

All ‘hidden’ lubrication points are grouped in easy-access lubrication banks, making service and maintenance less time-consuming and more convenient.

To avoid downtime due to contaminated oil, the variable chamber Fortima features an oil strainer with a visual indicator to ensure optimum functionality and peace of mind.

The automatic chaing lubrication system benefits from a large oil reservoir and eccentric pump for minimum maintenance and added viability. An adjustable eccentric pump supplies the oil to the drive chains.

• High operator comfort from a graphical user interface
• Clear design
• Easy use

KRONE offers a choice of electronic control units that help reduce operator fatigue. Each control box features a clear and uncluttered screen that displays all relevant machine data and a user-friendly interface.

A camera enhances operator comfort and road safety by monitoring the machine functions and ensuring good visibility around the machine. The camera feeds are viewed either on a separate screen or on a CCI terminal.

The DS 500 operator terminal has a 5.7’’ colour touchscreen, 12 function keys and a dial control for very easy use. The unit displays baling pressures, bale diameters, start of tying/wrapping and bale counts and allows operators to retrieve all valve and sensor functions.

The DS 100 control unit controls all Fortima functions from the convenience of the cab. The intuitive arrangement of the keys makes controlling machine features especially convenient and easy.

You can operate Fortima either from a CCI 800 or CCI 1200 terminal, both of which are ISOBUS-compatible and offer an 8- or 12-inch colour touchscreen for a clear overview of operation. Offering two side-by-side views, with one view showing the camera feeds and one the machine functions, these terminals eliminate the need for a second display screen in the cab when fitting a camera.

The Fortima F has a standard control box which indicates the target pressure, switches from net to twine wrap and activates the blade group control and controls the pick-up.

All Fortima balers have the Medium electronics as standard specification. In this specification they have two pointers at the front end which indicate the current pressure on either side of the bale chamber. The optional Comfort electronics process the sensor signals and control the control boxes automatically.
