EasyWrap 150

Mounted bale wrapper

EasyWrap 150

Bale wrapper

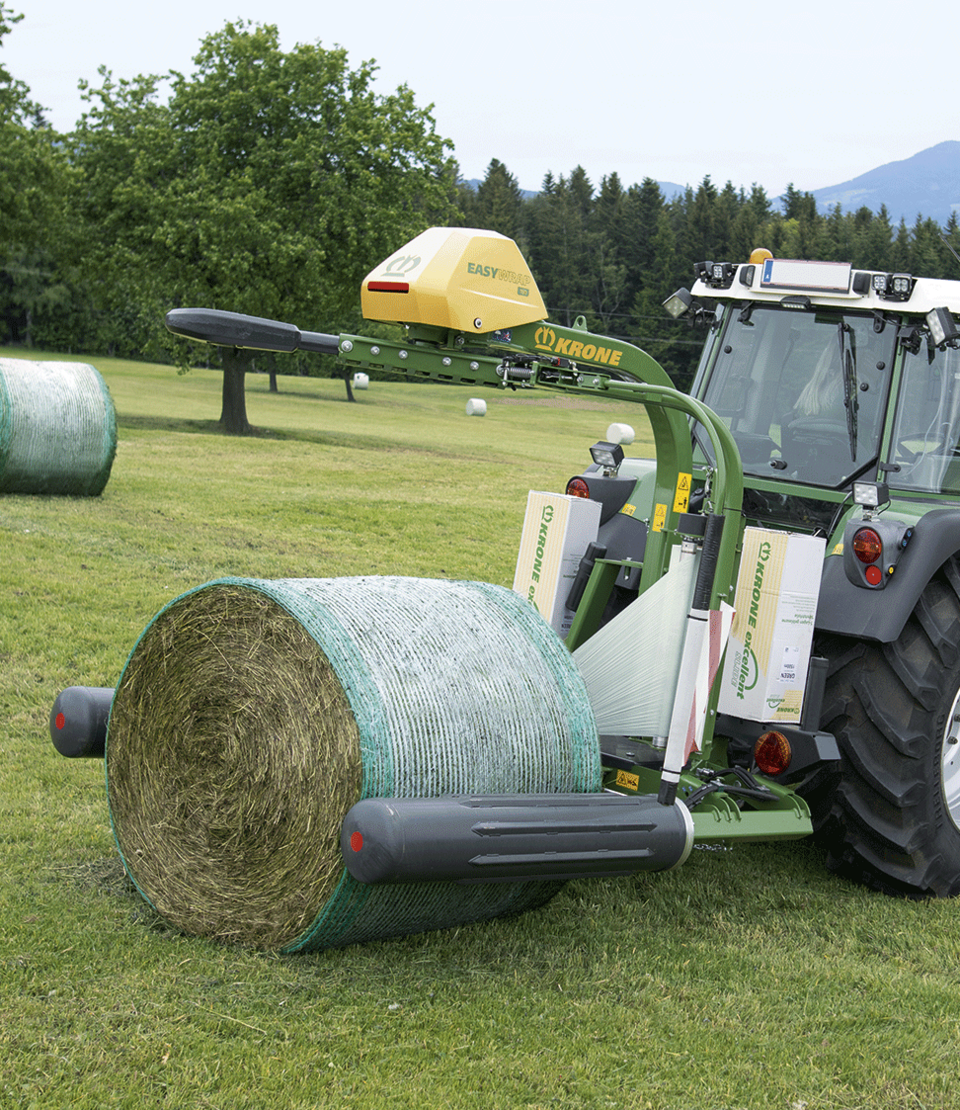

The KRONE EasyWrap 150 is mounted in the three-point linkage, front and rear. Beyond that, it also attaches to wheeled loaders and telescopic materials handlers for maximum productivity and machine utilisation. The KRONE EasyWrap 150 is the world’s fastest single-arm wrapper that operates at 36rpm. More than that, the extremely versatile machine is equally at home in bale handling. This versatility makes the EasyWrap a true specialist machine for farmers who run their own fleets.

  • Ideal weight distribution and good stability thanks to close tractor attachment
  • Flexible attachment to the front and rear linkage and to tractors, telehandlers and wheeled loaders
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.

Product video

KRONE EasyWrap – trailed bale wrapper for professionals

KRONE adds a new machine to its round bale wrapper programme: the new double-arm EasyWrap 165 T which follows the EasyWrap 150 launched in summer 2020. Wrapping 1.00-1.65m diameter bales, the 165 T is a truly high-capacity machine where a double arm orbits around the bale for wrapping. The machine lifts up to 1,650kg bales and wraps them at speeds of up to 40rpm achieving maximum efficiency and daily productivity. Controlled from a cab-based ISOBUS terminal, the wrapper offers convenient and straighttforward operation to suit professional standards. Naturally, all major machine functions including film roll replacement can also be executed manually from a separate operator panel on the machine.

Product features

EasyWrap 150
EasyWrap 150
  • The fastest single-arm wrapper in the market for maximum productivity and silage quality
  • Homologated for road travel thanks to the standard-fit rear lamp
  • Position controlled wrapping arm leads to perfect overlaps behind any tractor (no time control!)
  • Massive rollers ensure an effective bale roll – even of heavy bales of up to 1,600 kg
  • Big bobbins provide optimum bale control and ensure smooth bale roll especially in sloping fields
  • Work to road changeovers are made with a touch of a button
  • Four holders store spare film rolls for long working days. External control panel.
  • Automated functions for convenient bale control – from collecting to unloading

The ­KRONE EasyWrap 150 is mounted in the three-point linkage, front and rear. Beyond that, it also attaches to wheeled loaders and telescopic materials handlers for maximum productivity and machine utilisation.

Tractor attachment
Tractor attachment
  • Three-point linkage mounted
  • Ideal weight distribution and good stability thanks to close tractor attachment
  • Flexible attachment: Rear or front operation on tractors as well as on telehandlers and wheeled loaders

The KRONE EasyWrap 150 is mounted in the three-point linkage, front and rear. Beyond that, it also attaches to wheeled loaders and telescopic materials handlers for maximum productivity and machine utilisation.

Road mode retrieved at the touch of a button
Road mode retrieved at the touch of a button

Changeovers for road transport are fast and convenient as the operator simply presses a button in the cab. No need to dismount the machine. Road mode brings the loading arms together and the wrapping arm to neutral so the machine forms a compact unit for safe and easy travel on public roads.

It needn’t be a tractor
It needn’t be a tractor

EasyWrap 150 also attaches to the front linkage of a wheeled loader or materials handler where operators enjoy an even better view and gain excellent agility.

Three-point attachment
Three-point attachment

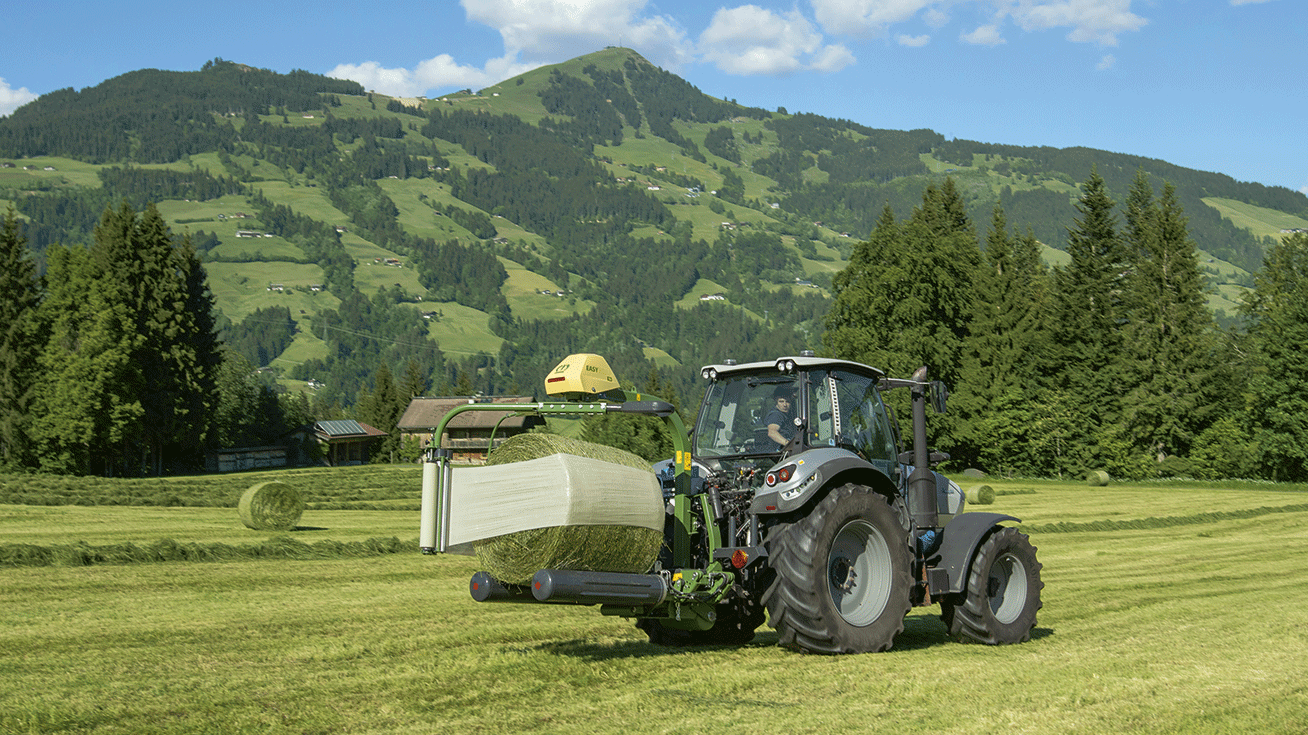

Attached in three-point rear linkage, EasyWrap 150 runs very close behind the tractor, providing optimum weight distribution and great stability also behind smaller tractors. EasyWrap 150 is also suitable for front linkage attachment on higher-power tractors.

The bale pick-up and discharge
The bale pick-up and discharge
  • Massive rollers – smooth and ribbed – roll the bale effectively
  • Hydro powered rollers ensure effective bale roll
  • Choice of automatic, semi-automatic or manual machine control

A simple mechanism allows operators to change the machine from small to big bales. The entire wrapping cycle – from collecting to unloading the bale – is controlled automatically, but semi-automatic or manual operation is also possible at any time.

Helpful support
Helpful support

An optional roller can be fitted at the base of the machine between the two link arm couplers. Absorbing the weight of the machine and the bale, it provides extra support so less weight is transferred to the tractor – a particular boon when operating the machine behind lower-powered and more light-weight tractors.

Perfect control
Perfect control

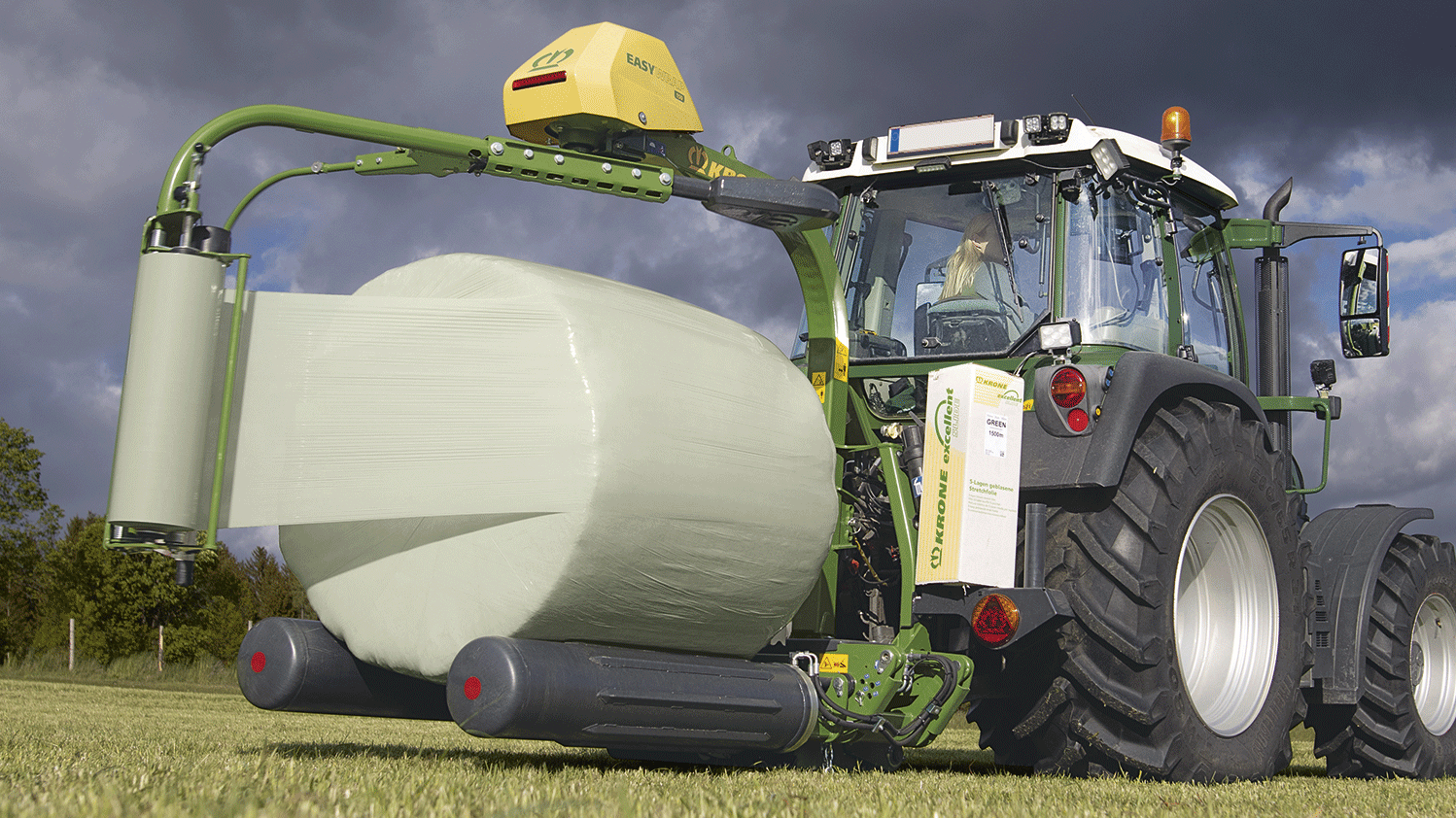

A massive bobbin (two as an option) keeps the bale in check during wrapping, preventing it form seizing up which is a risk with misshaped bales and in sloping fields.

Effective bale roll
Effective bale roll

Each of the two massive rollers is powered by its own separate drive which ensures the bale rolls dependably even in difficult conditions. With the two rollers rotating in synch, the bale rolls consistently for a uniform wrap. One of the rollers is ribbed to prevent bale slip.

Small and big bales
Small and big bales

EasyWrap 150 collects and wraps bales of 1.00 m to 1.50 m in diameter. Operators simply refit a pin to adjust the machine to a different bale diameter. The film is always applied to the middle of the bale, a method that results in optimum overlapping.

Easy use
Easy use

The number of wraps and the bale size are set on the DS 500 terminal with 5.7" touchscreen and twelve function keys.

Integral auto load function
Integral auto load function

The EasyWrap 150 is available with an optional bale turner that deposits the bale on its face so it cannot roll downhill. This bale turner also serves as a bale detector as part of the auto load feature: as the wrapper makes contact with the bale, the bale pushes this detector towards the tractor. This in turn triggers the two rollers, bringing them together to pick up the bale. The entire wrapping cycle including depositing the finished bale can be carried out fully automatically. But you can also operate the machine manually should there be a reason or problem. This gives you maximum flexibly in any situation.

The wrapping device
The wrapping device
  • The fastest single-arm wrapper in the market with an up to 36rpm orbiting speed
  • Quick-change film roll Dispenser
  • Flexible film pre-stretch and film break detector
  • Cut-and-tie system fixes the film and makes a clean cut

The KRONE EasyWrap is currently the fastest single-arm wrapper in the market. Although the wrapping arm orbits at an incredibly high 36rpm, it delivers an uncompromised quality of wrap – an achievement that is also attributed to the sensors that monitor all the machine functions.

On-board hydraulic system
On-board hydraulic system

[Translate to EN:] Für Schlepper mit geringer Ölleistung gibt es eine optionale Aufsteckpumpe. Diese Hydraulikpumpe inklusive Ölvorrat garantiert maximale Ballenzahl unabhängig von Schleppergröße oder Ölleistung.

Counterweight
Counterweight

A counterweight is available as an option. The weight makes for smoother machine operation by counterbalancing any imbalances that may develop behind a lower-powered tractor.

Film roll holders
Film roll holders

Optional holders store four extra film rolls on the right and left side of the machine. Arranged at the front, their mountings also accommodate extra lights and external controls. From this control panel you can relocate the wrap arm (forward / reverse) and open and close the cut-and-tie.

Film tear detector
Film tear detector

EasyWrap 150 has a standard-fit film break detector that is integrated in the pre-stretch assembly and instantly stops the rollers when film break or end of film is detected.

Cut-and-tie
Cut-and-tie

The cut-and-tie unit fixes the film at the end of the wrapping cycle and makes the cut. The end of the film clings to the bale. Loose film ends won’t be seen on the EasyWrap. A spring-loaded clamp traps the film end so it is ready for the next cycle.

Fast roll change
Fast roll change

The film dispenser swings out for easy roll change. Fitting the new roll and threading the film into the pre-stretch assembly is an easy job, especially as you can move the wrap arm out of the way with a touch of a button.

Flexible pre-stretch
Flexible pre-stretch

750 mm wide film is pre-stretched to 55-70% depending on requirements for efficient film use. Film pre-stretch is a standard feature.

Watched by sensors
Watched by sensors

The EasyWrap wrapping arm orbits at speeds of up to 36rpm for extremely fast wrapping cycles. Rather than time controlled, the arm is position controlled by an angle sensor. Also, a brake fixes it in position so it always starts out from the same position – a detail that is particularly important in sloping fields. The technology ensures perfect wraps and consistent overlaps even behind different tractors and when controlled by different hydraulic systems.

Models

EasyWrap 150
EasyWrap 150
Attachment Three point linkage, mounted configure
Wrap arm single-arm configure
Max. film roll holders 4 configure
Bale diameter (m) 1.00 - 1.50 configure
Max. bale weight (kg) 1600 configure
Max. wrapping speed (rpm) 36 configure
configure

Flexible attachment

KRONE EasyWrap 150

KRONE Landmaschinen

KRONE Landmaschinen

KRONE Landmaschinen

Videos

Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
Please accept marketing-cookies to see this content.
